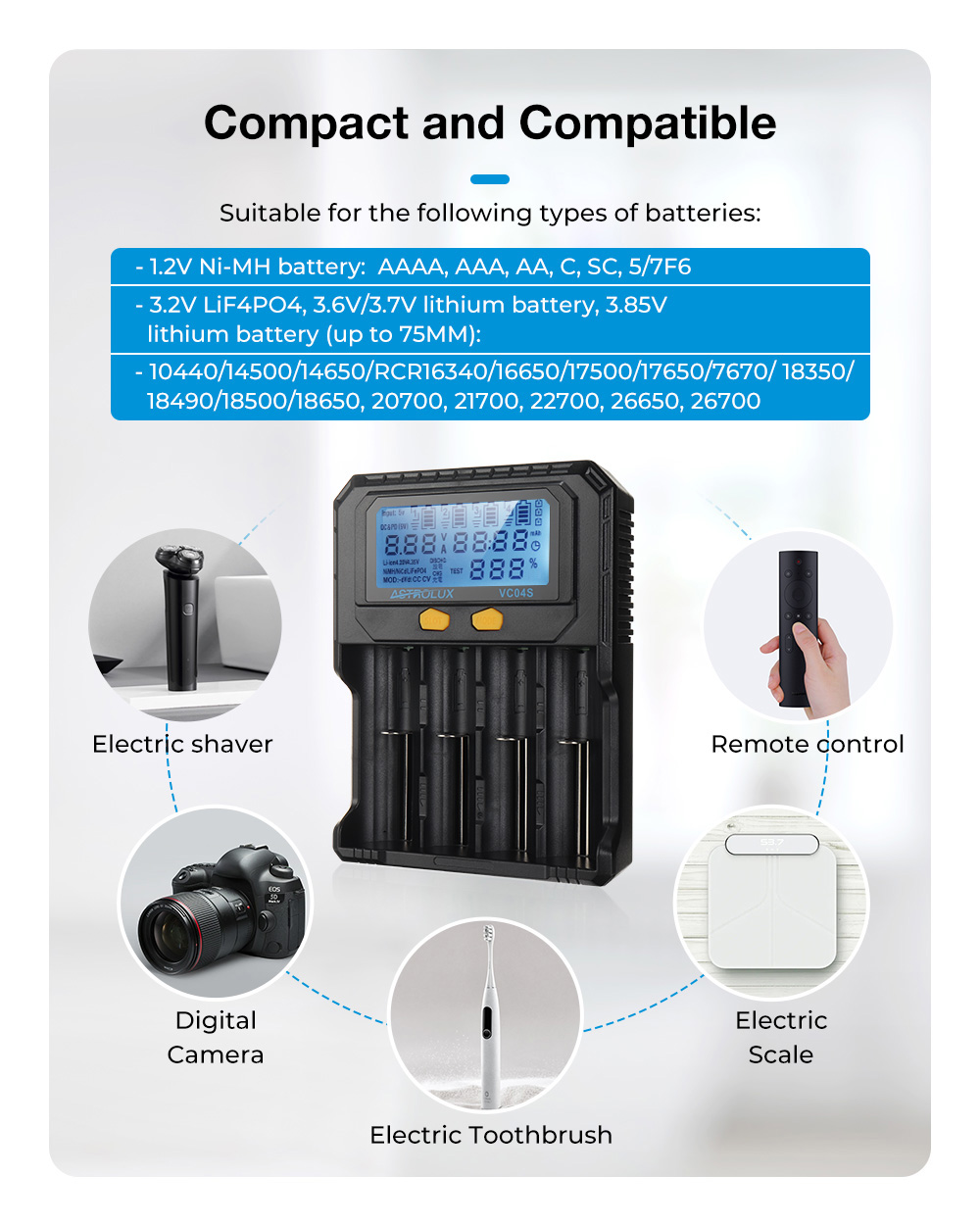

Suitable for Charging the Following Types of Batteries:
1.2V nickel hydrogen battery: AAAA, AAA, AA, C, SC, 5/7F6
3.2V LiF4PO4, 3.6V/3.7V Lithium Battery, 3.85V Lithium Battery (up to 75MM):
10440/14500/14650/RCR16340/16650/17500/17650/17670/18350/18490/18500/
18650,20700,21700,22700,26650,26700
Specifications:
|
Material
|
PC
|
|

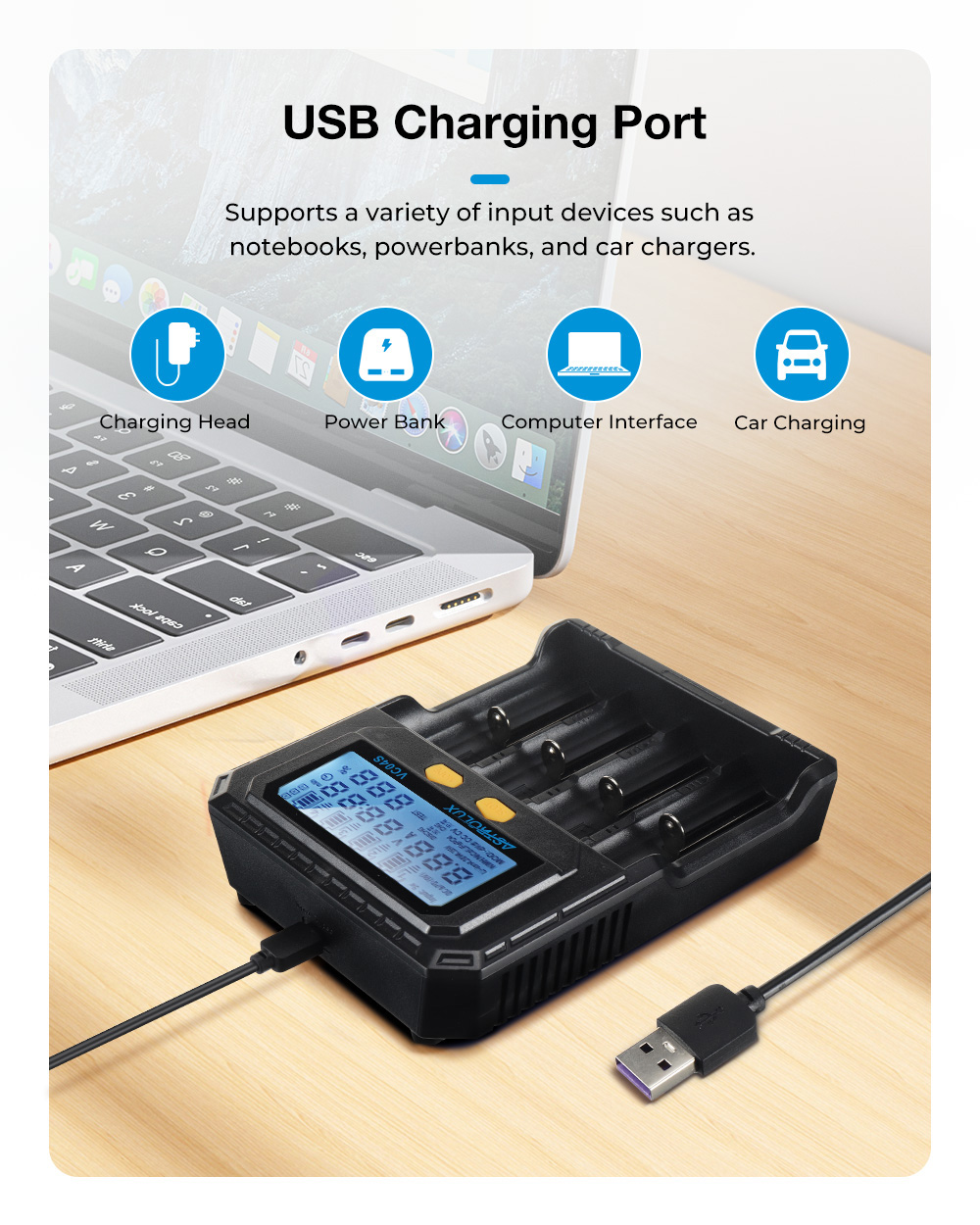

Input
|
TYPEC DC 5V3A/9V 2.2A
|
|
Charging Cutoff Voltage
|
4.20 ± 0.05V/4.35 ± 0.05V/3.60V ± 0.05V/1.48V ± 0.1V
|
|
Charging Current
|
0.5A * 4; 1A * 4,2A * 2 (1, 4 Channels Li ion)
|
|
Charging Cutoff Voltage:
|
4.20 ± 0.05V/4.35 ± 0.05V/3.60V ± 0.05V/1.48V ± 0.1V
|
|
Discharge Current
|
0.5A
|
|
Slots
|
4 Slots
|
|
Discharge Cut-off Load Voltage
|
1.2V Ni MH: 0.86V; 3.6V/3.7V/3.85VLi-ion：2.8V； 3.2V LiFePO4：2.2V
|
|
Operating Temperature
|
0-60℃
|
|
Weight
|
230g
|
|
Charger Size
|
153mm * 123mm * 38mm
|
|
Screen display
|
The channel data corresponding to the digital prompt; The light will turn off after 30 seconds of operation, and any button can wake up the light to turn on; The channel light will stay on when fully charged
|

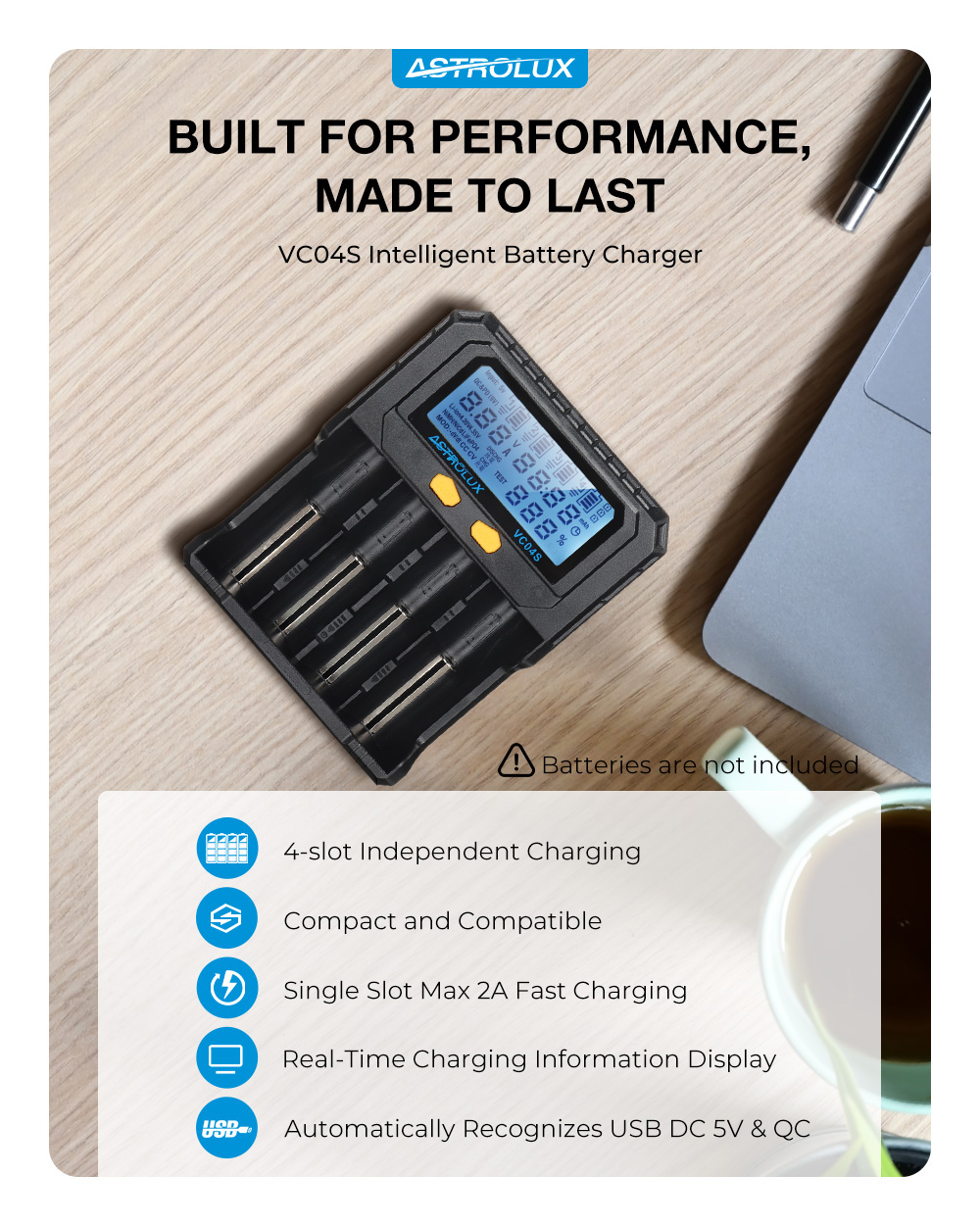

Features:

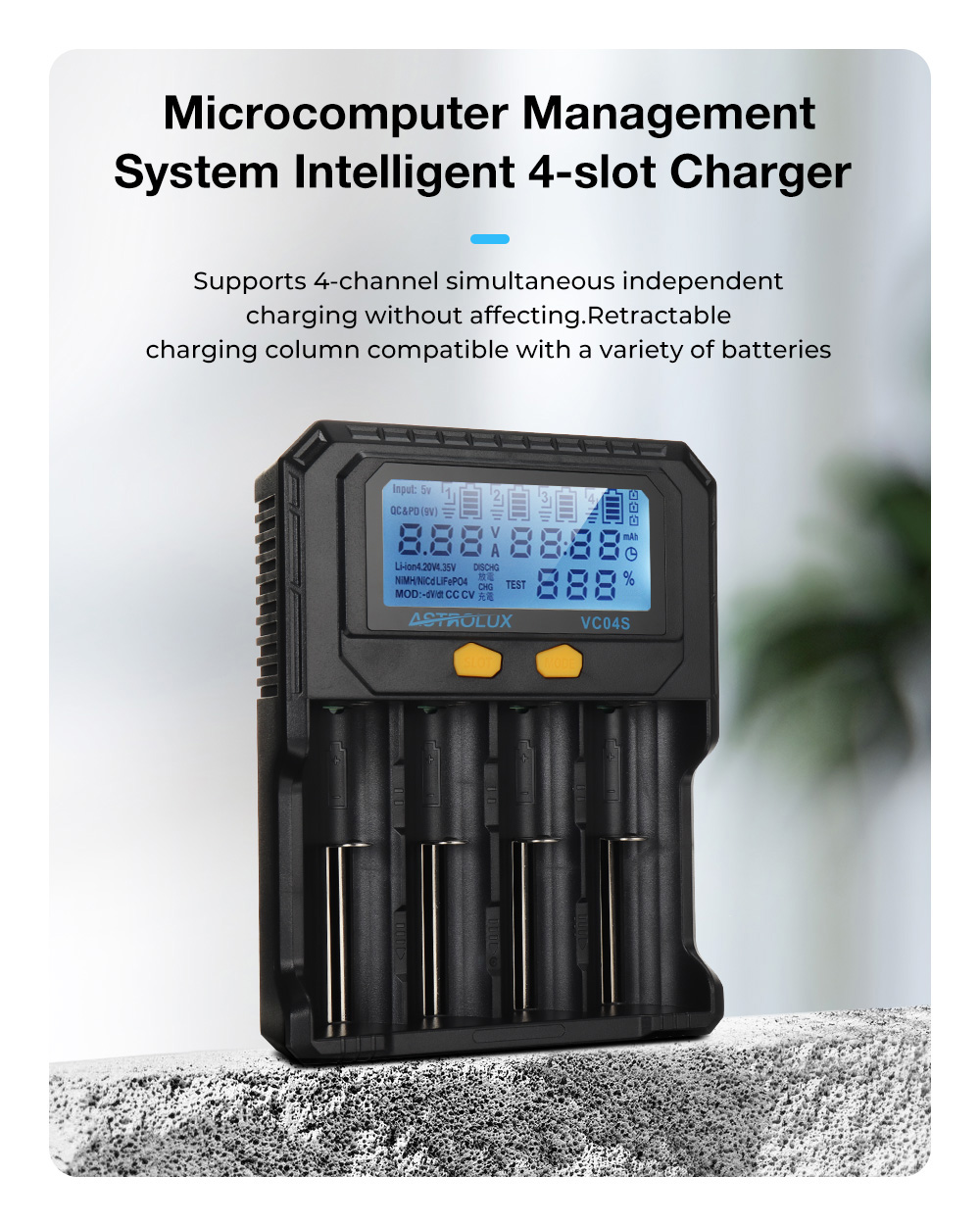

-4 independent charging slots, maximum 2A * 2 (1 slot and 4 slots)

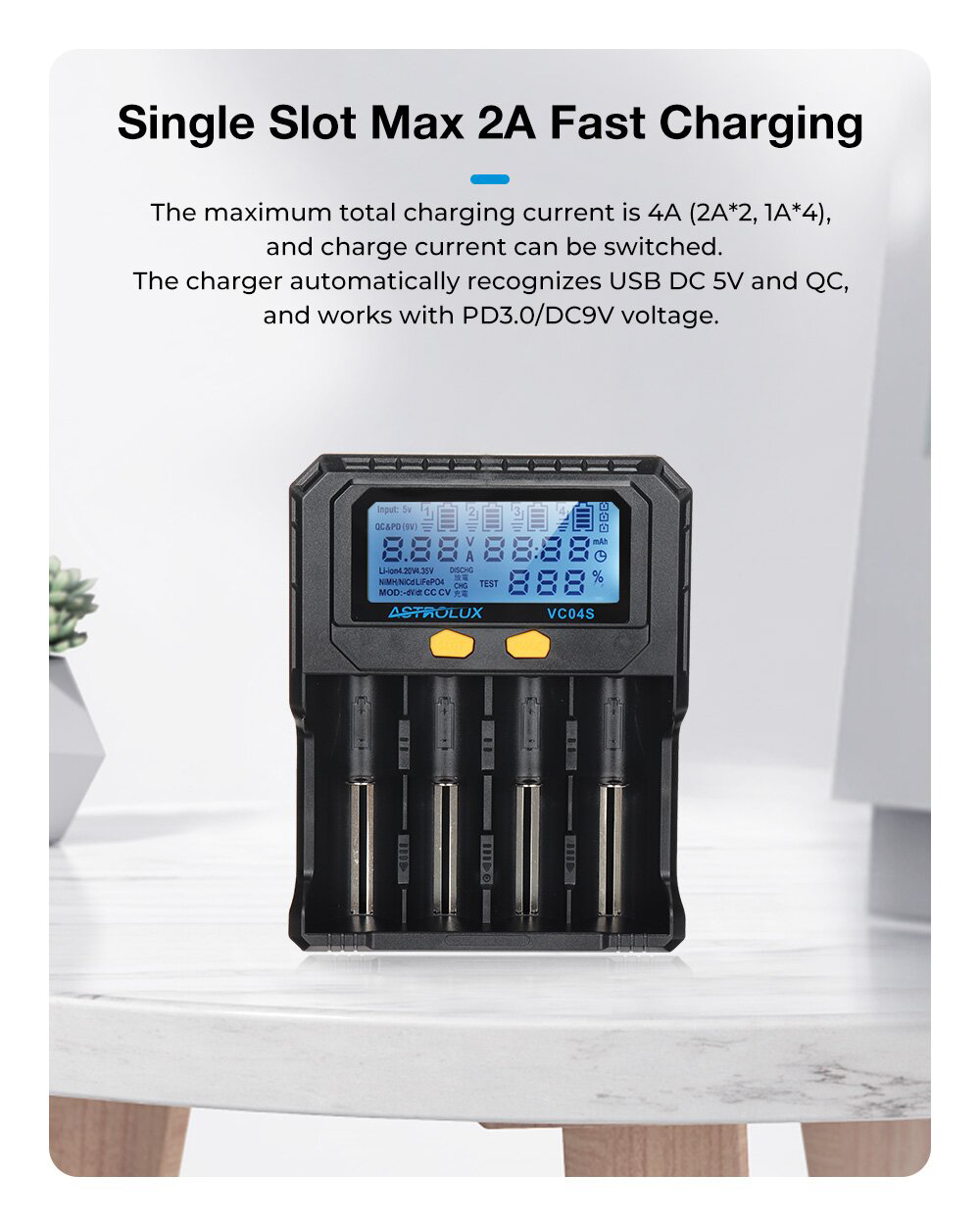

-The maximum charging current is 4A (2A * 2,1A * 4), and the charging current can be selected

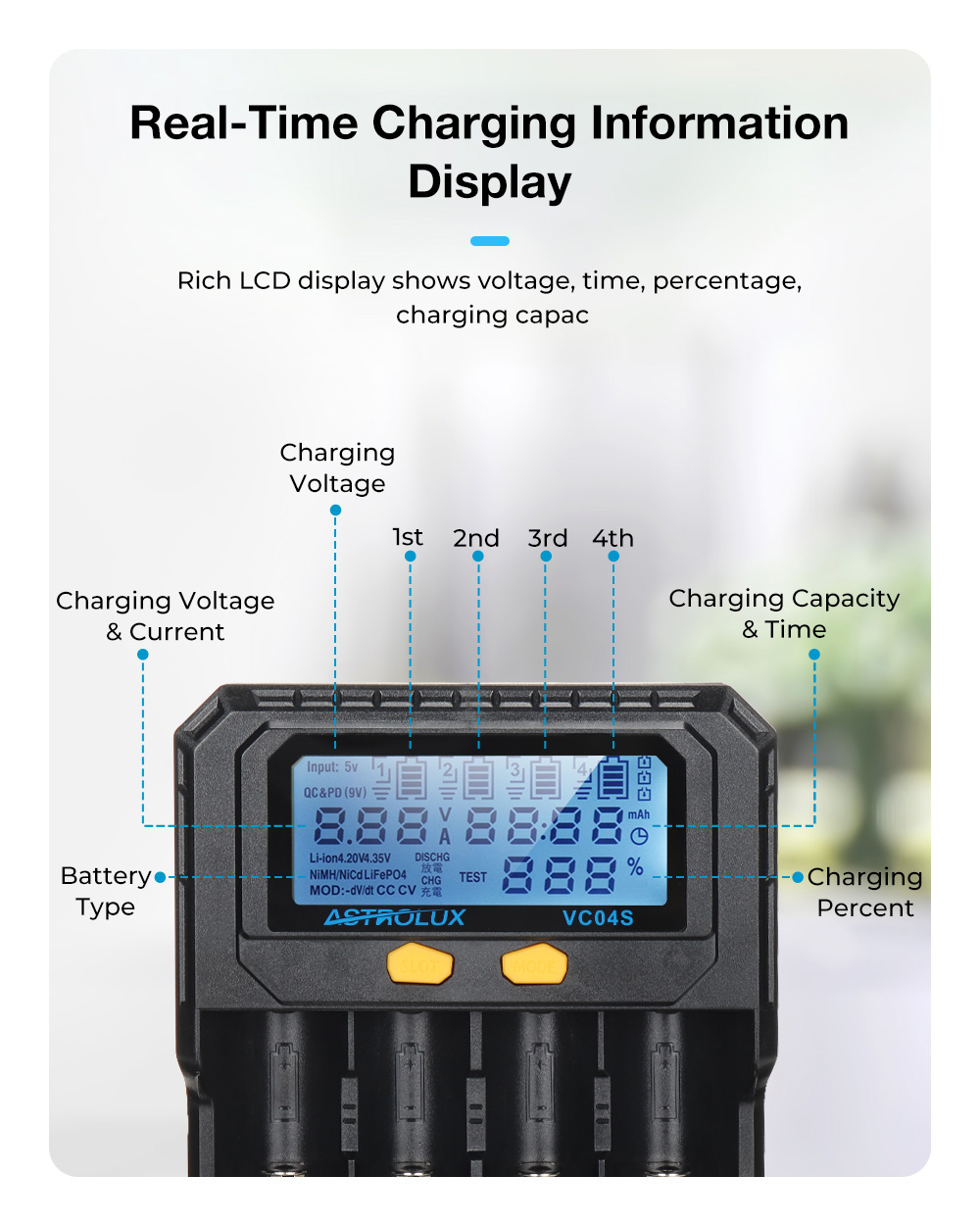

-Rich LCD display screen displaying voltage, time, percentage, charging capacity,
-0V voltage battery that can activate protection board protection
-The fourth slot has charging, discharging, and capacity sharing functions
-Suitable for charging 1.2V nickel hydrogen batteries, 3.2V LiF4PO4, 3.6V/3.7V lithium batteries, 3.85V lithium batteries

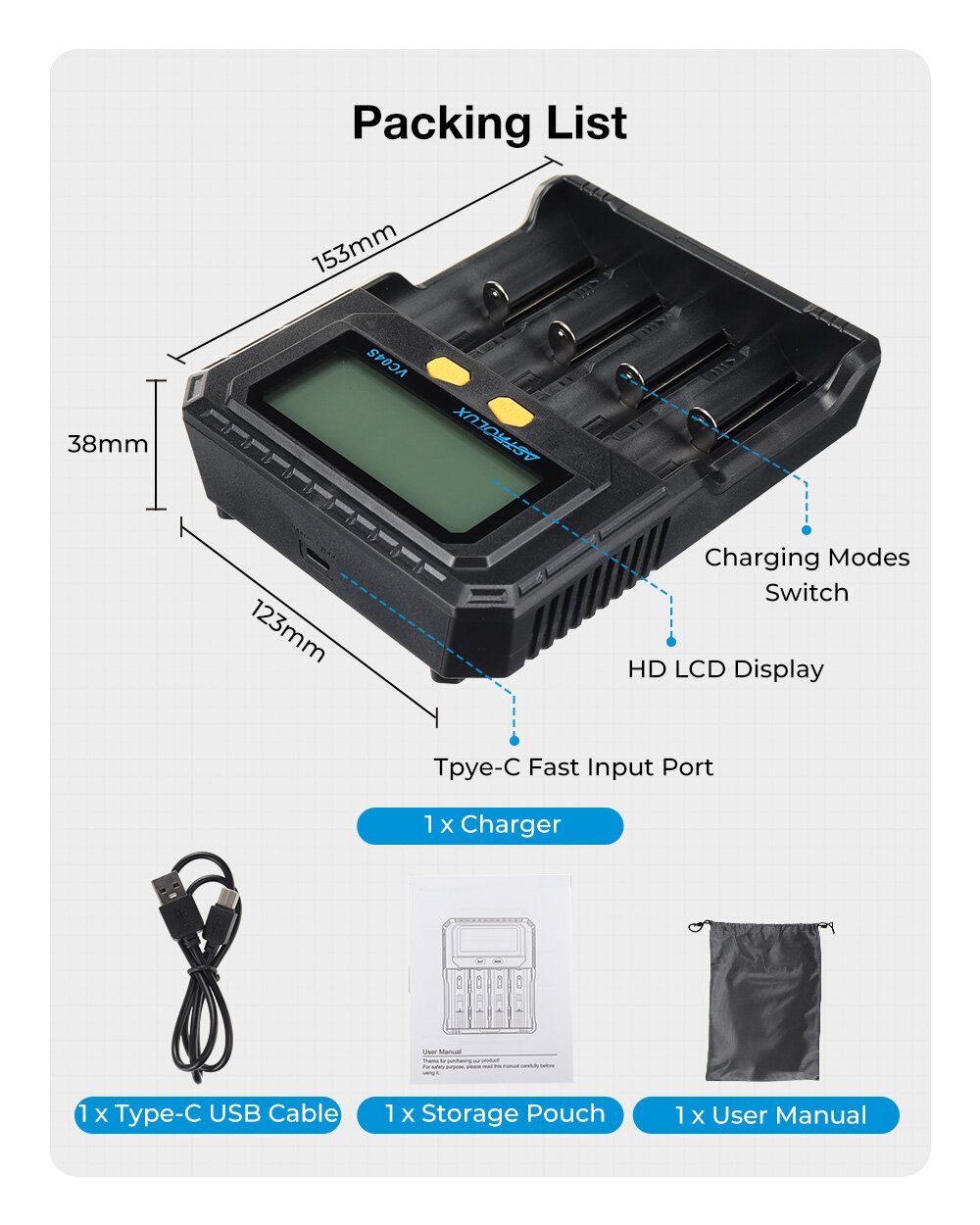

Package List:
1 x Astrolux® VC04S Battery Charger
1 x Charging Cable
